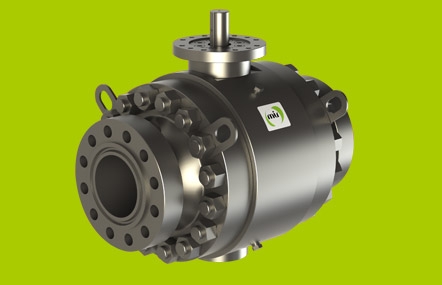

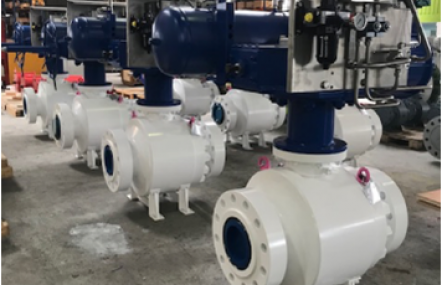

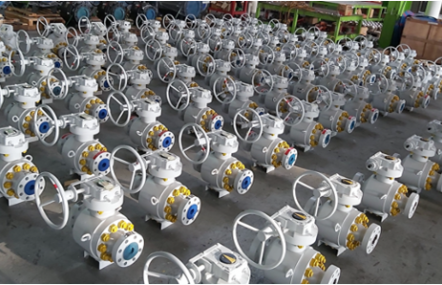

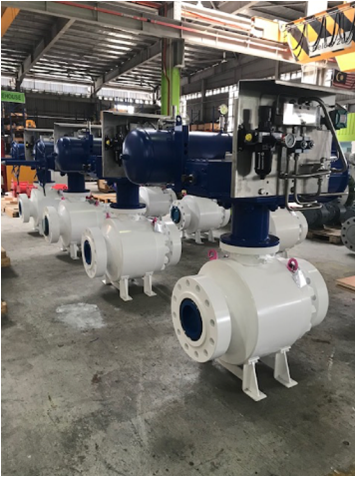

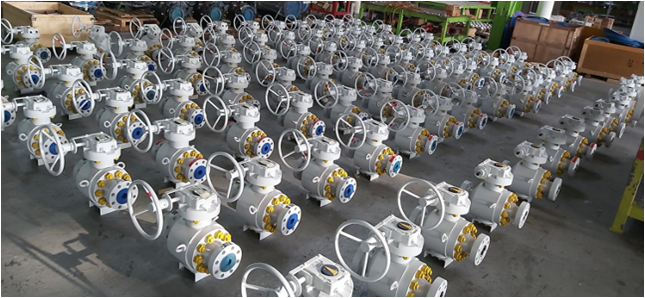

MV11 SIDE-ENTRY BALL VALVES API6A
API 6A - API 17D
  • Established engineered product design, well-known in the industry
  • Typically used in upstream applications on wellheads, christmas trees, manifolds or flowlines.
  • Most commonly specified due to the bolted body construction, allowing for disassembly once removed from the pipeline for repairs to be carried out.
  • Most competitive design of all the ball valves in terms of cost and delivery.
  • Available also in MV11-CP compact design.
  • Manufactured with forged materials in various grades of CS, SS, Duplex and all other high alloys, ensuring the design can meet all customers material requirements.
  • PSL Levels 1, 2, 3 and 3G.
SIZES AND PRESSURE CLASSES
PRESSURE CLASSONSHORE / OFFSHORESUBSEA (API 17D)
API 2.000 (138 barg)1"13/16 - 9"1"13/16 - 9"
API 3.000 (207 barg)1"13/16 - 9"1"13/16 - 9"
API 5.000 (345 barg)1"13/16 - 9"1"13/16 - 9"
API 10.000 (690 barg)1"13/16 - 9"1"13/16 - 9"
API 15.000 (1.035 barg)1"13/16 - 5"1"13/16 - 5"

PSL 1, 2, 3, 3G

Other sizes and pressure classes available upon request

KEY FEATURES AND APPLICATIONS
› Full and reduced bore› API 6A / 17D
› RF, RTJ, WE, Pup, Hub ends› Firesafe
› Soft and metal seated design› Onshore, Offshore, Subsea
› Oring and lipseal design› Above ground, underground
› SR, DPE, Dual seat design› Upstream, Wellheads
› CS, SS, Duplex, Superduplex, Inconel, Incoloy all types› Manifolds / Flowlines
› Manual and actuated› Christmas trees



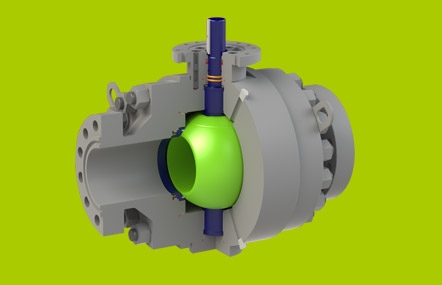

DESIGN FEATURES
API 6A / ISO 10423  DESIGN AND CONSTRUCTION (API 17D for subsea)STANDARDDOUBLE BODY BARRIERSTANDARD
FACE-TO-FACE DIMENSIONS TO API 6A (API 17D for subsea)STANDARDTRIPLE STEM BARRIERSTANDARD
TRUNNION MOUNTEDSTANDARDVENT PLUGSTANDARD
INDEPENDENT STEM AND BALLSTANDARDBLEED VALVEOPTIONAL
FLOATING SEATSSTANDARDDRAIN PLUGSTANDARD
SOFT SEAT INSERTSTANDARDSTEM INJECTION FITTINGSTANDARD
METAL-TO-METAL SEATSOPTIONALSEAT INJECTION FITTINGOPTIONA
O-RING TYPE SEALSSTANDARDSEAT POCKET OVERLAYOPTIONAL
POLYMERIC LIP-SEALSOPTIONALSEAL AREA OVERLAYOPTIONAL
SELF-RELIEVING SEATS (SR)STANDARDWETTED PARTS OVERLAYOPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-1)
(DOUBLE PISTON EFFECT) (DPE SEATS)
OPTIONALLOCKING DEVICEOPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-2)
(DUAL SEAT) (SR+DPE)
OPTIONALLIFTING LUGS / VALVE SUPPORTSTANDARD
DOUBLE BLOCK & BLEED (DBB)OPTIONALMANUAL OR ACTUATED OPERATIONAS REQUESTED
FULL OR REDUCED BOREAS REQUESTEDFIRESAFE DESIGNSTANDARD
FLANGED ENDS / WELDED ENDS / HUB ENDSAS REQUESTEDIN-LINE MAINTENANCENO
ANTISTATIC DEVICESTANDARDON SITE MAINTENANCEYES
ANTI BLOWOUT STEMSTANDARD
