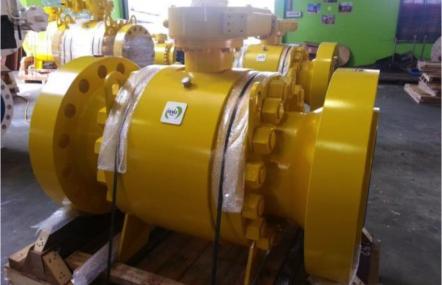

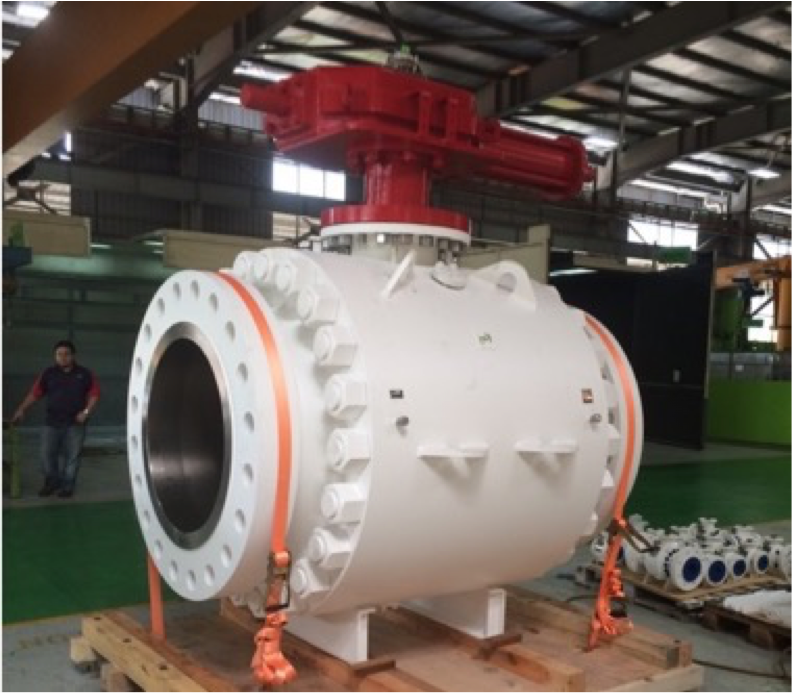

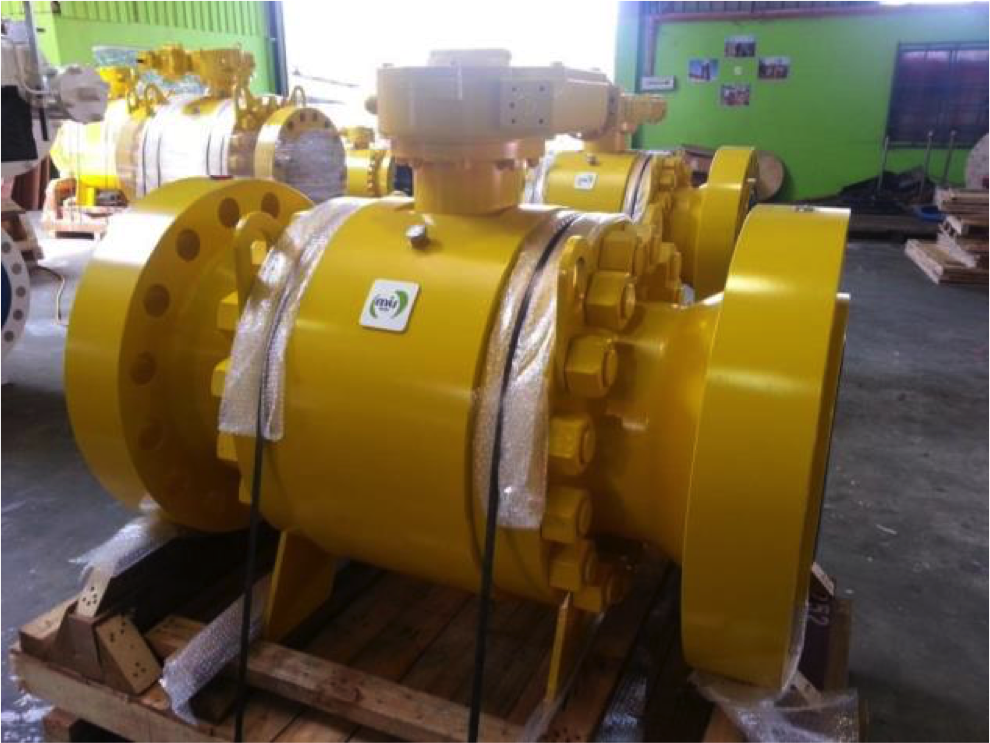

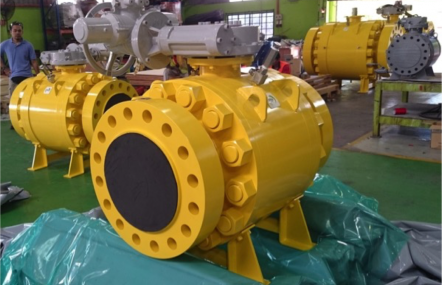

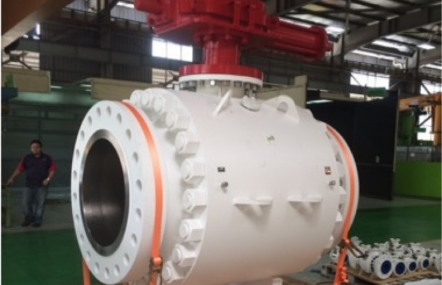

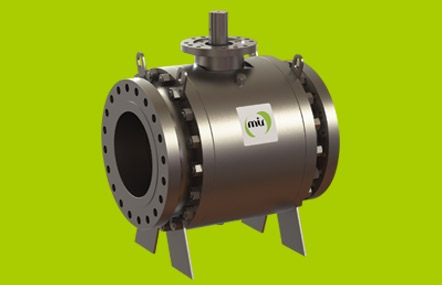

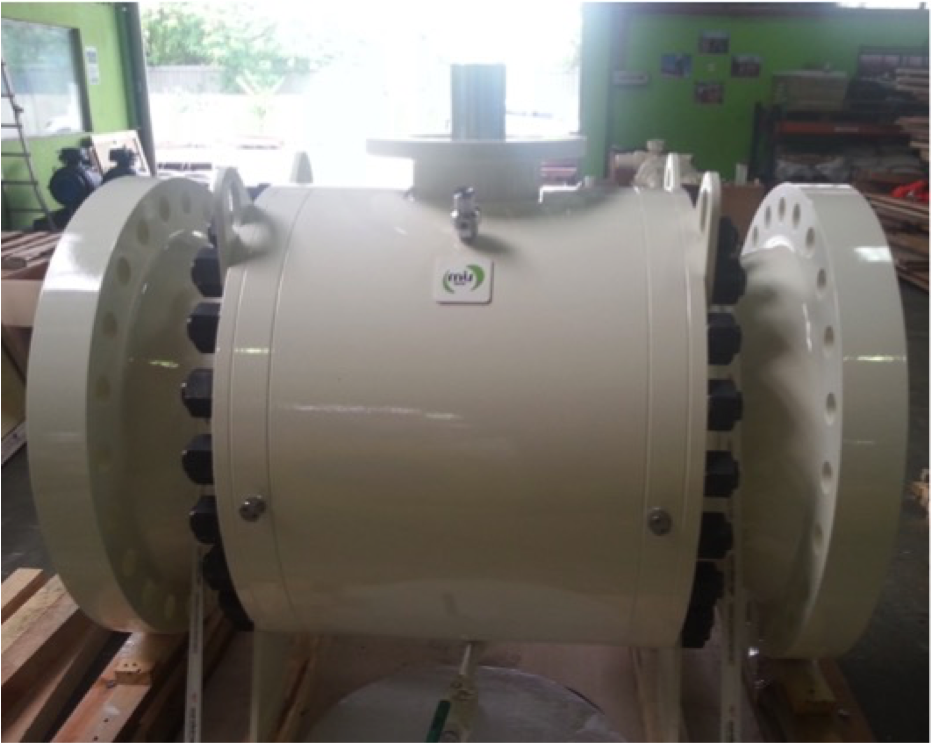

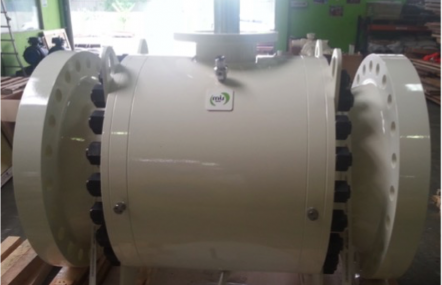

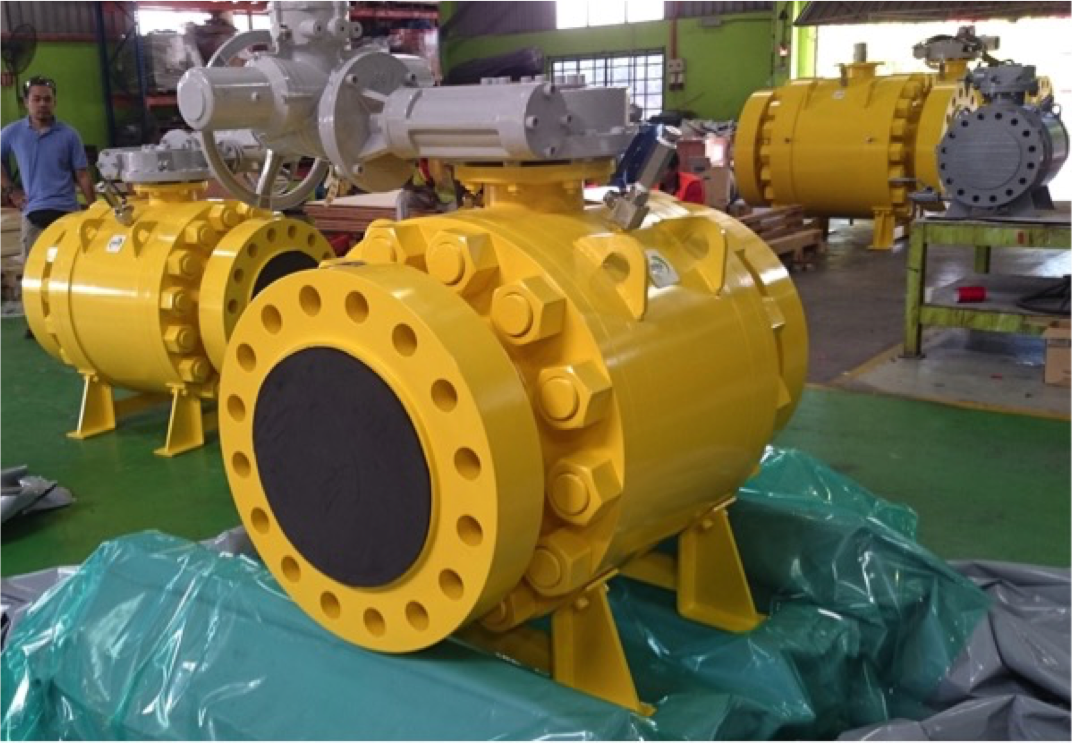

MV3 SIDE-ENTRY BALL VALVES API6D
API 6D - API 6DSS
  • Most commonly specified due to the bolted body construction, allowing for disassembly once removed from the pipeline for repairs to be carried out.
  • Most competitive design of all the ball valves in terms of cost and delivery.
  • Available also in compact design (MV3-CP).
  • Manufactured with forged materials in various grades of CS, SS, Duplex and all other high alloys, ensuring the design can meet all customers material requirements.
  • Large inventory of parts kept available in-house.
  • Available for short delivery 16 weeks or less.
  • Delivery of spare parts from stock up to max.16 weeks.
  • Suitable for all industries and applications.
SIZES AND PRESSURE CLASSES
SERVICEASME
CL. 150-600
ASME
CL. 900
ASME
CL. 1500
ASME
CL. 2500
Standard (above and below ground)1”-60”1”-48”1”-36”1”-20”
Subsea (API 6DSS)1”-48”1”-36”1”-36”1”-20”
Low temperature / cryogenic down to -196°C1”-24”1”-24”1”-20”1”-12”
HIgh temperature < +500°C1”-20”1”-16”1”-12”1”-8”



KEY FEATURES AND APPLICATIONS
› Full and reduced bore› API 6D/6DSS
› RF, RTJ, WE, Pup, Hub ends› Firesafe
› Soft and metal seated design› Onshore, Offshore, Subsea
› Oring and lipseal design› Above ground, underground
› SR, DPE, Dual seat design› Low and high temperature
› CS, SS, Duplex, Superduplex, Inconel, Incoloy all types› ESD
› Manual and actuated› HIPPS

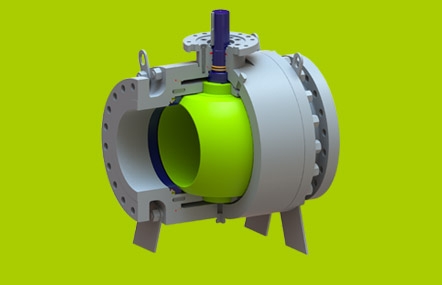

DESIGN FEATURES
API 6D DESIGN AND CONSTRUCTIONSTANDARDDOUBLE BODY BARRIERSTANDARD
FACE-TO-FACE DIMENSIONS TO API 6D
AND ANSI B16.10
STANDARDTRIPLE STEM BARRIERSTANDARD
INDEPENDENT STEM AND BALLSTANDARDVENT PLUGSTANDARD
FLOATING SEATSSTANDARDBLEED VALVEOPTIONAL
SOFT SEAT INSERTSTANDARDDRAIN PLUGSTANDARD
PRIMARY METAL – SECONDARY SOFT SEATOPTIONALSTEM INJECTION FITTINGSTANDARD
METAL-TO-METAL SEATSOPTIONALSEAT INJECTION FITTINGOPTIONAL
O-RING TYPE SEALSSTANDARDSEAT POCKET OVERLAYOPTIONAL
POLYMERIC LIP-SEALSOPTIONALSEAL AREAS OVERLAYOPTIONAL
SELF-RELIEVING SEATS (SR)STANDARDWETTED PARTS OVERLAYOPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-1)
(DOUBLE PISTON EFFECT) (DPE SEATS)
OPTIONALBODY INTERNAL LININGOPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-2)
(DUAL SEAT) (SR+DPE)
OPTIONALEXTENDED STEM FOR UNDERGROUND
INSTALLATION
OPTIONAL
DOUBLE BLOCK & BLEED (DBB)OPTIONALEXTENDED BONNET FOR LOW
OR HIGH TEMPERATURE
OPTIONAL
FULL OR REDUCED BOREAS REQUESTEDLOCKING DEVICEOPTIONAL
FLANGED ENDS / WELDED ENDS / HUB ENDSAS REQUESTEDLIFTING LUGS/VALVE SUPPORTSTANDARD
TRANSITION PUPS FOR WELDED ENDS VALVESOPTIONALMANUAL OR ACTUATED OPERATIONAS REQUESTED
ANTISTATIC DEVICESTANDARDFIRESAFE DESIGNSTANDARD
ANTI BLOWOUT STEMSTANDARDIN-LINE MAINTENANCENO
TRUNNION MOUNTEDSTANDARDON-SITE MAINTENANCEYES
