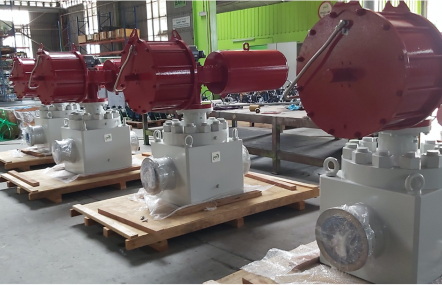

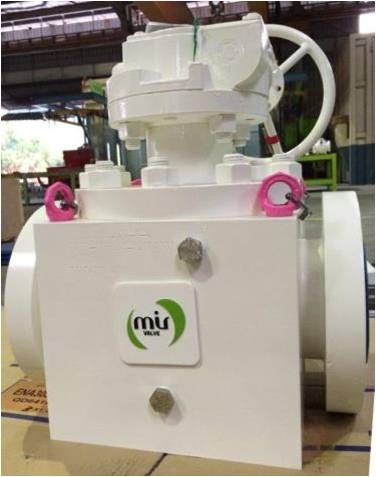

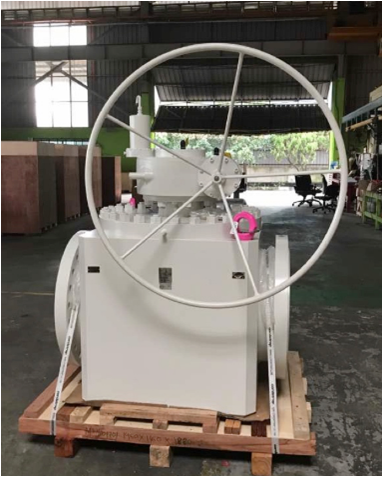

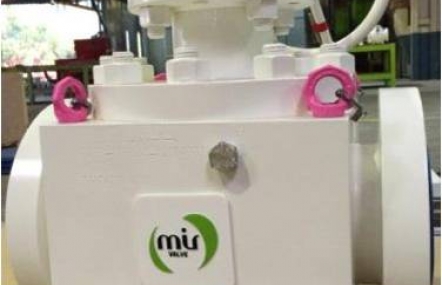

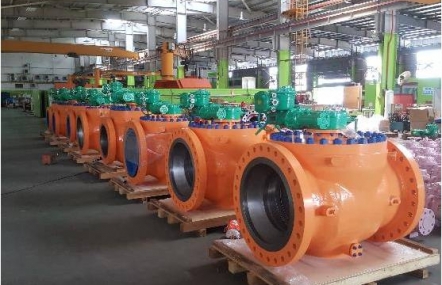

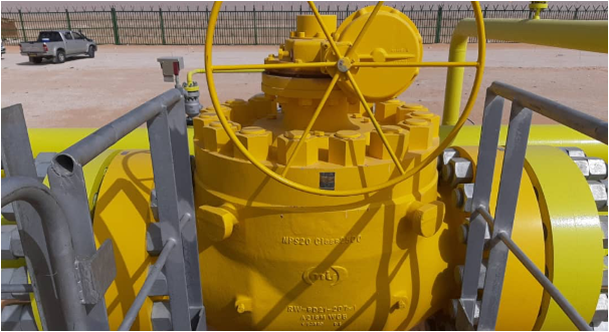

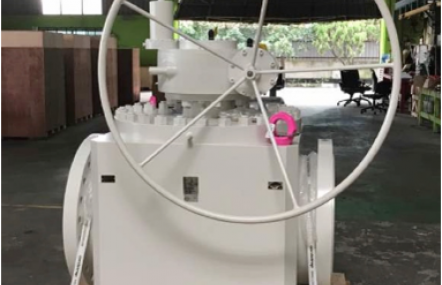

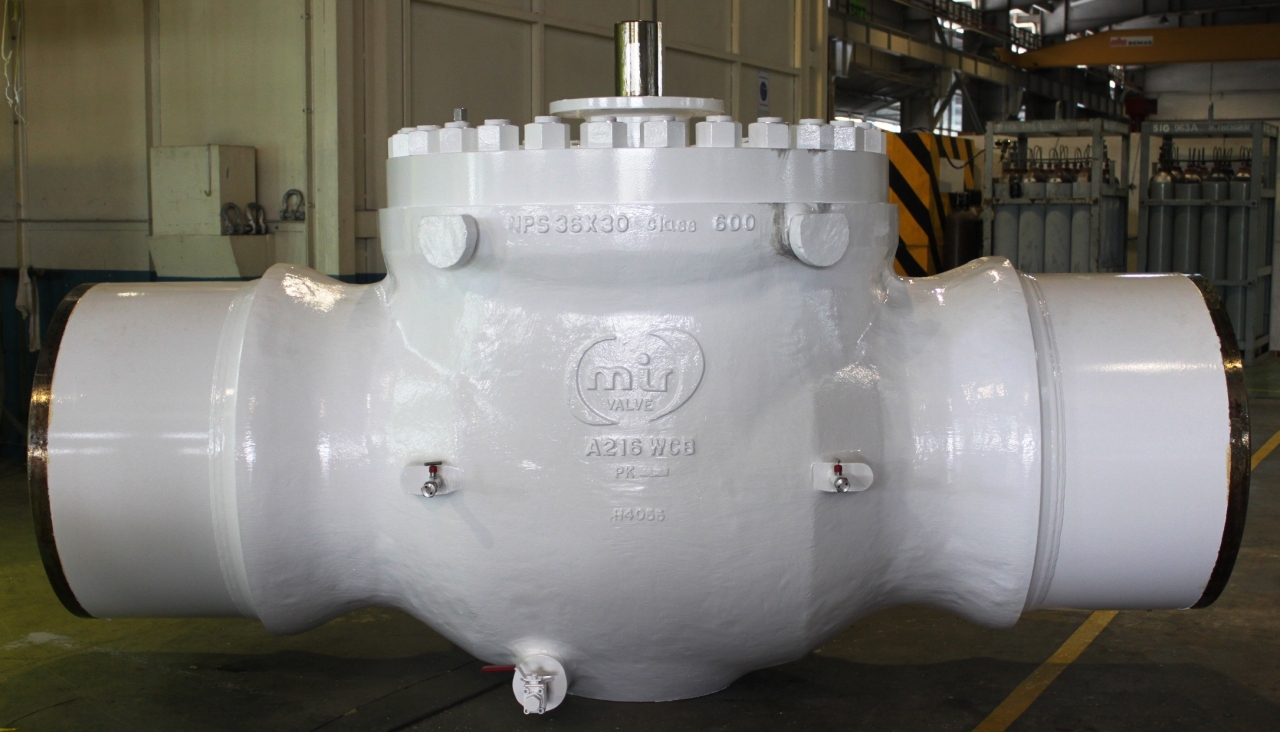

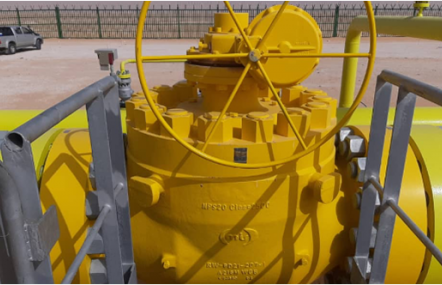

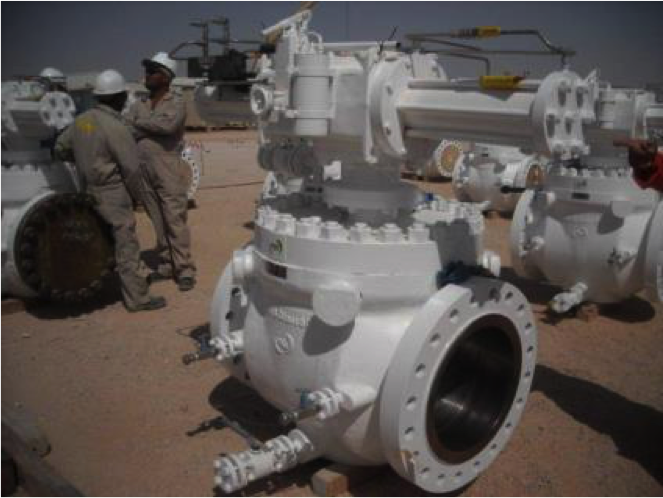

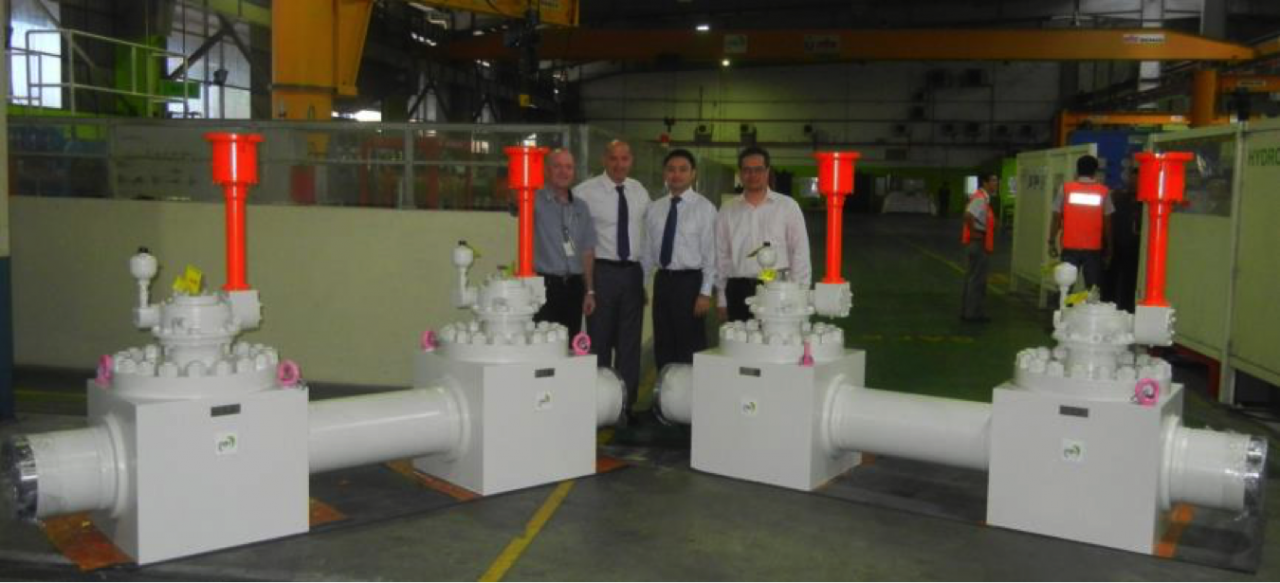

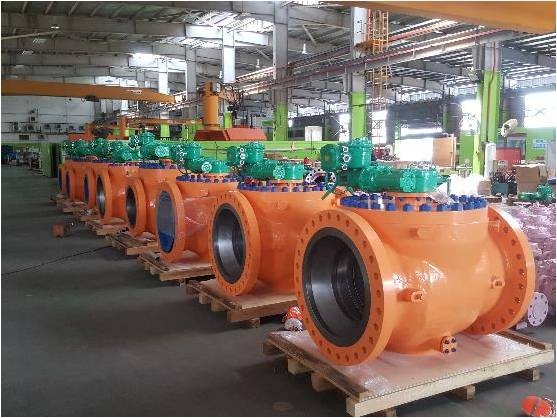

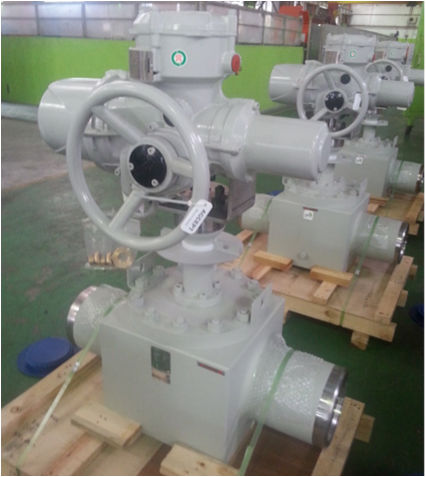

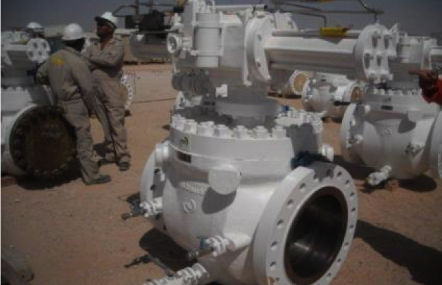

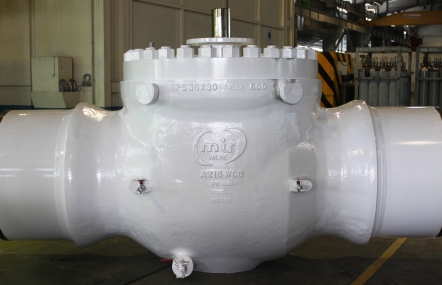

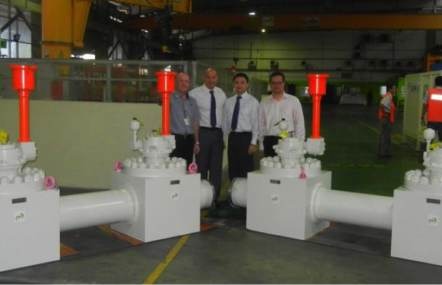

MV1 TOP-ENTRY BALL VALVES

API 6D - API 6DSS

Established engineered product design, well-known in the industry
Fully in-line repairable whether in vertical or horizontal position; the bolted construction consisting of a single-piece body with a bonnet, allows disassembly on site in-line for inspections and repairs.
After repairs are completed, the valve is re-assembled; to validate the integrity of the repair work, an on-line body cavity line test can be performed to confirm the seats are sealing as required (this test can be done only when the seat design is DIB-1 / DPE).
Manufactured with forged or cast materials in various grades of CS, SS, Duplex and all other high alloys, ensuring this design can meet all our customers material requirements.
Designed and manufactured to withstand external loads from the pipeline to prevent any deformation of the body when the internal parts are fully removed for repairs and new parts are installed.
Finite Element Analysis (FEA) is routinely carried out during the design phase of the body and ball & seat configuration.
Delivery of spare parts from stock up to max.16 weeks.
Engineered products typically having a long lead time delivery of 24 weeks and longer.
Suitable for all industries and applications onshore, offshore and subsea.

SIZES AND PRESSURE CLASSES
SERVICE	ASME CL. 150-600	ASME CL. 900	ASME CL. 1500	ASME CL. 2500
STANDARD (ABOVE AND BELOW GROUND)	2”-60”	2”-48”	2”-36”	2”-20”
SUBSEA (API 6DSS)	2”-48”	2”-36”	2”-36”	2”-20”
LOW TEMPERATURE / CRYOGENIC DOWN TO -196°C	2”-24”	2”-24”	2”-20”	2”-12”
HIGH TEMPERATURE < +500°C	2”-20”	2”-16”	2”-12”	2”-8”

Other sizes and classes available upon request

KEY FEATURES AND APPLICATIONS
› FULL AND REDUCED BORE	› API 6D/6DSS
› RF, RTJ, WE, PUP, HUB ENDS	› FIRESAFE
› SOFT AND METAL SEATED DESIGN	› ONSHORE, OFFSHORE, SUBSEA
› ORING AND LIPSEAL DESIGN	› ABOVE GROUND, UNDERGROUND
› SR, DPE, DUAL SEAT DESIGN	› LOW AND HIGH TEMPERATURE
› CS, SS, DUPLEX, SUPERDUPLEX, INCONEL, INCOLOY ALL TYPES	› ESD

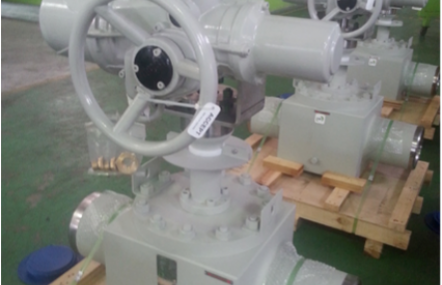

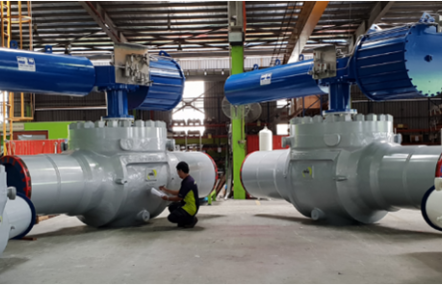

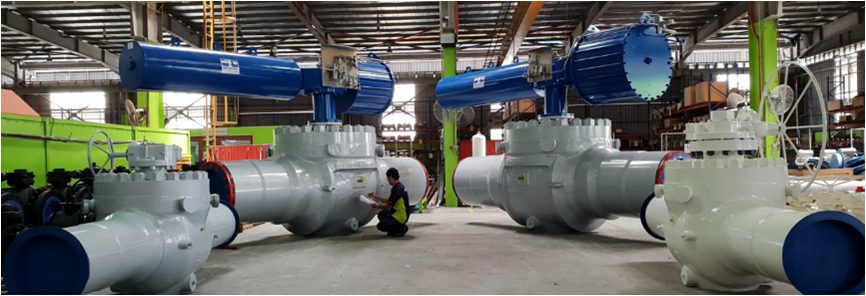

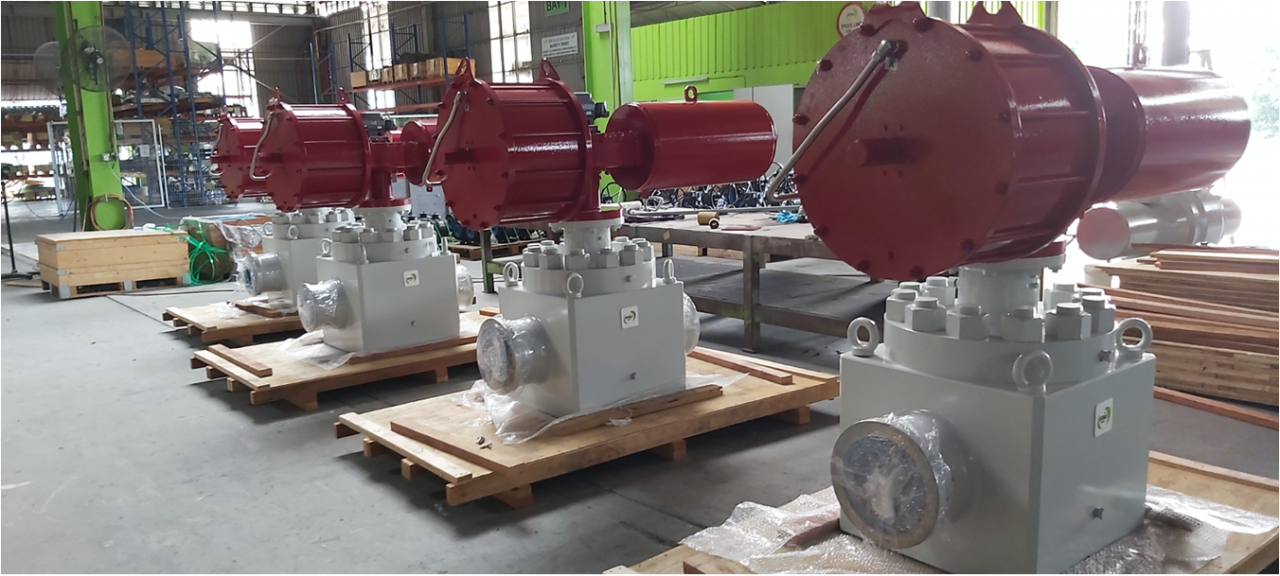

› MANUAL AND ACTUATED	› HIPPS

DESIGN FEATURES
API 6D DESIGN AND CONSTRUCTION	STANDARD	DOUBLE BODY BARRIER	STANDARD
FACE-TO-FACE DIMENSIONS TO API 6D AND ANSI B16.10	STANDARD	TRIPLE STEM BARRIER	STANDARD
INDEPENDENT STEM AND BALL	STANDARD	VENT PLUG	STANDARD
FLOATING SEATS	STANDARD	BLEED VALVE	OPTIONAL
SOFT SEAT INSERT	STANDARD	DRAIN PLUG	STANDARD
PRIMARY METAL – SECONDARY SOFT SEAT	OPTIONAL	STEM INJECTION FITTING	STANDARD
METAL-TO-METAL SEATS	OPTIONAL	SEAT INJECTION FITTING	OPTIONAL
O-RING TYPE SEALS	STANDARD	SEAT POCKET OVERLAY	OPTIONAL
POLYMERIC LIP-SEALS	OPTIONAL	SEAL AREAS OVERLAY	OPTIONAL
SELF-RELIEVING SEATS (SR)	STANDARD	WETTED PARTS OVERLAY	OPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-1) (DOUBLE PISTON EFFECT) (DPE SEATS)	OPTIONAL	BODY INTERNAL LINING	OPTIONAL

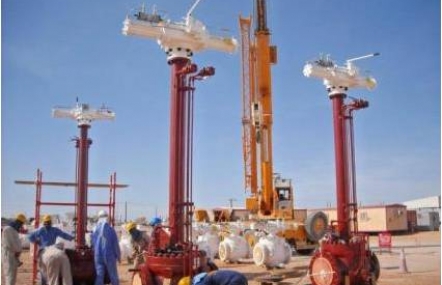

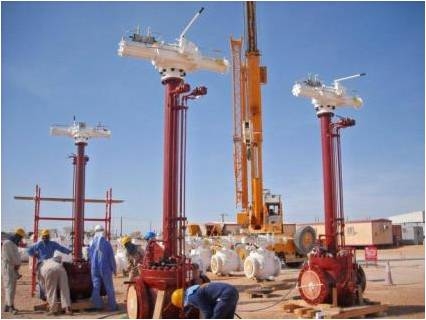

DOUBLE ISOLATION AND BLEED (DIB-2) (DUAL SEAT) (SR+DPE)	OPTIONAL	EXTENDED STEM FOR UNDERGROUND INSTALLATION	OPTIONAL
DOUBLE BLOCK & BLEED (DBB)	OPTIONAL	EXTENDED BONNET FOR LOW OR HIGH TEMPERATURE	OPTIONAL
FULL OR REDUCED BORE	AS REQUESTED	LOCKING DEVICE	OPTIONAL
FLANGED ENDS / WELDED ENDS / HUB ENDS	AS REQUESTED	LIFTING LUGS/VALVE SUPPORT	STANDARD
TRANSITION PUPS FOR WELDED ENDS VALVES	OPTIONAL	MANUAL OR ACTUATED OPERATION	AS REQUESTED
ANTISTATIC DEVICE	STANDARD	FIRESAFE DESIGN	STANDARD
ANTI BLOWOUT STEM	STANDARD	IN-LINE MAINTENANCE	YES
TRUNNION MOUNTED	STANDARD	ON-SITE MAINTENANCE	YES
