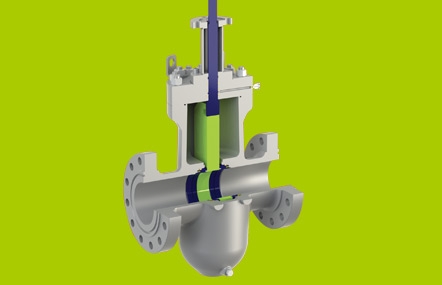

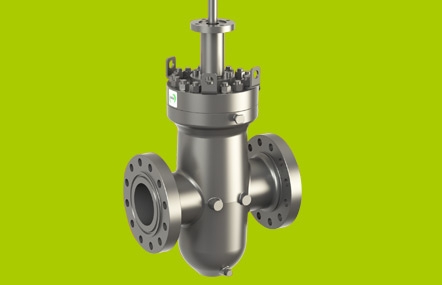

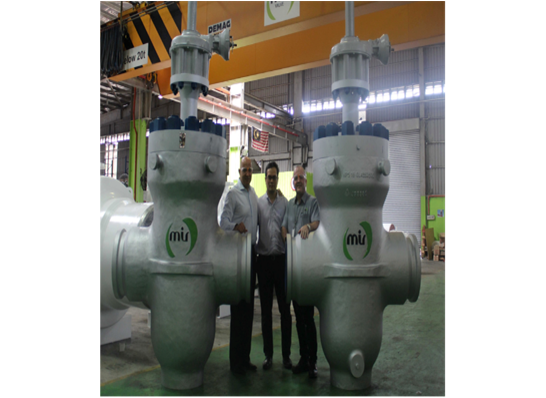

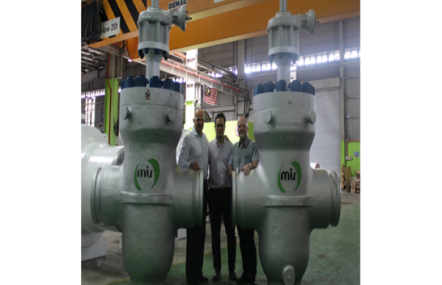

MV7-C THROUGH-CONDUIT GATE VALVES API6D
CAST BODY
  • This body construction is selected for high pressure designs CL. 900-1500-2500; typical services and applications would be for low or high temperature and subsea. Usually, this body design is specified by the customer in their specifications as their design preference.
  • Full in-line maintenance; the bolted top-entry construction allows disassembly on site for inspections and repairs or replacement of internal parts.
  • The flat sealing surfaces between the slab and the seats guarantee a more reliable bubble-tight shut-off for both soft and metal seats ensuring a longer life cycle in service.
  • Designed and manufactured to withstand external loads from the pipeline to prevent any deformation of the body when the internal parts are fully removed for repairs and new parts are installed.
  • Can be welded directly into the pipeline
  • Suitable for all industries and applications as shown below.
SIZES AND PRESSURE CLASSES
SERVICEASME
CL. 150-600		ASME
CL. 900		ASME
CL. 1500		ASME
CL. 2500
Standard2”- 60”2” - 48”2”- 36”2" - 16"
Low temp. down to -50°C2" - 24"2" - 24"2" - 24"2" - 16"
Subsea2" - 48"2" - 36"2" - 24"2" - 16"
Underground2” - 60”2” - 48”2” - 36”2" - 16"
High temp. +220°Cto +500°C2" - 24"2" - 24"2" - 20"2" - 12"



KEY FEATURES AND APPLICATIONS
› Full and reduced bore› API 6D/6DSS
› RF, RTJ, WE, Pup, Hub ends› Firesafe
› Soft and metal seated design› Onshore, Offshore, Subsea
› Oring and lipseal design› Above ground, underground
› SELF-RELIEVING AND DOUBLE BARRIER› Low temperature
› CS, SS, Duplex, Superduplex, Inconel, Incoloy all types› ESD
› Manual and actuated



DESIGN FEATURES
API 6D DESIGN AND CONSTRUCTIONSTANDARDDRAIN PLUGSTANDARD
FACE-TO-FACE DIMENSIONS TO API 6D AND ASME B16.10STANDARDSTEM INJECTION FITTINGSTANDARD
INDEPENDENT STEM AND OBTURATOR (SLAB)STANDARDSEAT INJECTION FITTINGOPTIONAL
FLOATING SEATSSTANDARDSEAT POCKET OVERLAYOPTIONAL
PRIMARY METAL SECONDARY SOFTSTANDARDSEAL AREAS OVERLAYSTANDARD
METAL-TO-METAL SEATSOPTIONALWETTED PARTS OVERLAYOPTIONAL
O-RING TYPE SEALSSTANDARDLIFTING LUGS/VALVE SUPPORTSTANDARD
POLYMERIC LIP-SEALSOPTIONALMANUAL OR ACTUATED OPERATIONAS REQUESTED
SELF-RELIEVING SEATSSTANDARDFIRESAFE DESIGNSTANDARD
FULL OR REDUCED BOREAS REQUESTEDNORMAL ACTINGSTANDARD
FLANGED ENDS / WELDED ENDS / HUB ENDSAS REQUESTEDREVERSE ACTINGOPTIONAL
TRANSITION PUPS FOR WELDED ENDS VALVESOPTIONALRISING STEM DESIGNSTANDARD
STEM BACKSEAT (API 6D)STANDARDNON-RISING STEM DESIGNOPTIONAL
DOUBLE BODY BARRIERSTANDARDGATE SKIRTOPTIONAL
TRIPLE STEM BARRIERSTANDARDIN-LINE MAINTENANCEYES
VENT PLUGSTANDARDON-SITE DISASSEMBLY FOR REPAIRS AND MAINTENANCEYES
BLEED VALVEOPTIONAL
